折带过滤机

浏览量:3643??

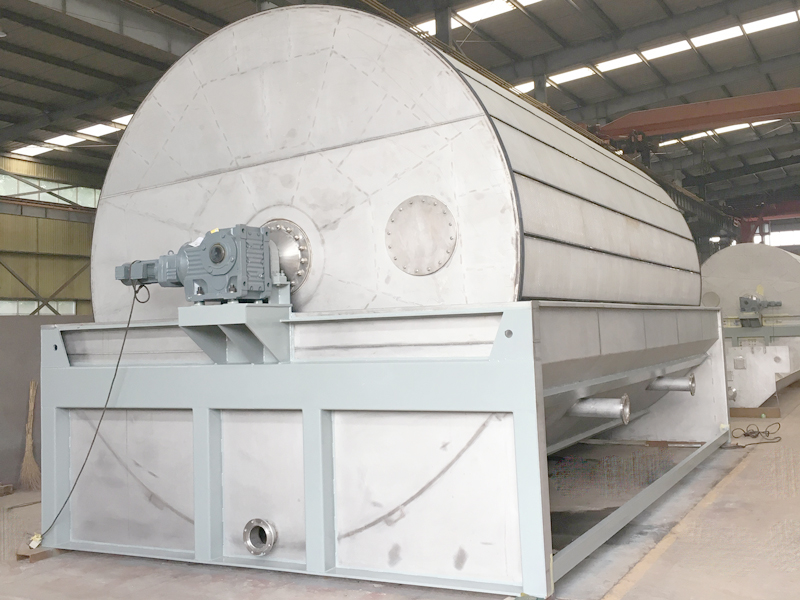

折带过滤机

产品特点

GD 型折带过滤机是我公司消化吸收国外的先进技术,开拓创新,自主研制开发的高品质、高性价比的客户化固液分离设备,是在真空作用下连续吸滤,脱水,吸干和卸料的过滤机械。别出心裁的设计,饱含创新技术的功能,使该产品特别适用于固相浓度较低,粒度较细,粘度较大的物料浓缩与过滤。

■用户化的设计,应客户不同所需

■先进的结构功能,出色的产品品质

■非凡的生产能力,滤饼湿度低 , 易卸料

■高澄清度的滤液,含固形物少,回收率高

■简单的工艺布置,省料、省钱又省力

■优良的生产环境,操作简便,使用方便

GD folding belt filter is super separation equipment of solid and liquid that our developed basis on foreign advantage technology. It is a filter that can continuously filter, dewater, dry and discharge under the function of vacuum. The unique design and perfect function make this machine can use in thickening and filtering of the material with lower solid phase concentration and high viscosity and fine particles.

■Custom service according to different requirement

■Advanced construction, super quality

■Extraordinary capacity, lower filter cake humidity, easy to discharge

■Filtrate clarified degree is high, less solid content, high recovery rate

■Simple processing, save material, money and effort

■Simple operation, easy to use

工作原理

GD 型过滤机系滤布行走式的固液分离设备。工作过程中,槽内的物料在真空抽吸作用下,液体透过介质 ( 滤布 ),经过吸液管进入分配阀,再从分配阀的出液管进入自动排放滤液缸 ( 或气液分离器 ) 后排出,固形物留在滤布上形成滤饼。滤饼在行走滤布的带动下经卸料辊,自动卸下。滤布经自动纠偏装置进入洗布箱,在高压冲洗水下获得再生,再经张紧辊后返回到转鼓表面,开始新的过滤循环。

Separation equipment of solid and liquid. During running, under the vacuum suction, the liquid of material in vat enter into distributing valve through pipettes after filter media, then from outlet pipe of distributing valve to discharge cylinder or gas-liquid separator and get out, the solids form filter cake on the filter cloth.

Discharged by roll with running of filter cloth. Filter cloth enters into the cloth-wash box and regeneration after HP water flushing and back to drum surface from tension roll to begin new filtration cycle.

应用领域

★玉米蛋白的过滤脱水

★小麦淀粉的过滤脱水

★医药行业青霉素的过滤脱水

★矿业选煤废水,铜矿石和金属氢氧化物浆的过滤脱水

★filter and dewatering of corn protein.

★filter and dewatering of wheat starch

★filter and dewatering of penicillin in pharmaceutical industry

★filter and dewatering of coal waste water in coal , copper ore and metal hydroxide.
